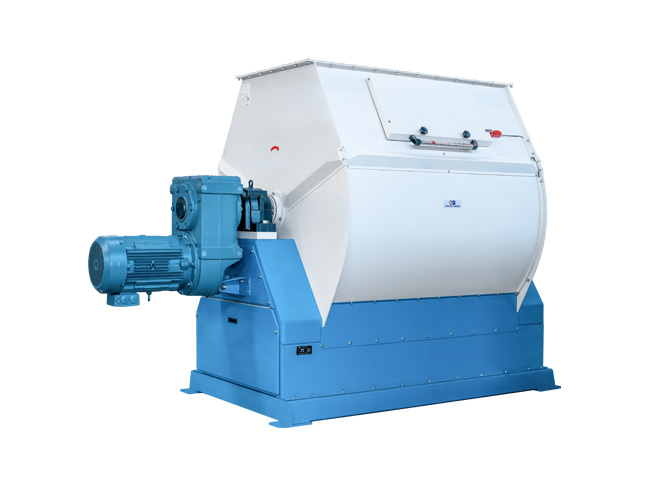

Paddle mixer DHJ are utilized for flour mixing purposes within the flour blending section. Single ribbon, Mild steel or SST 304 available with different sizes to suit all capacity requirements. This series type can also be adapted for pre-mix products.
| Model | Vol. (m³) |
Batch (kg) |
Weight (kg) |

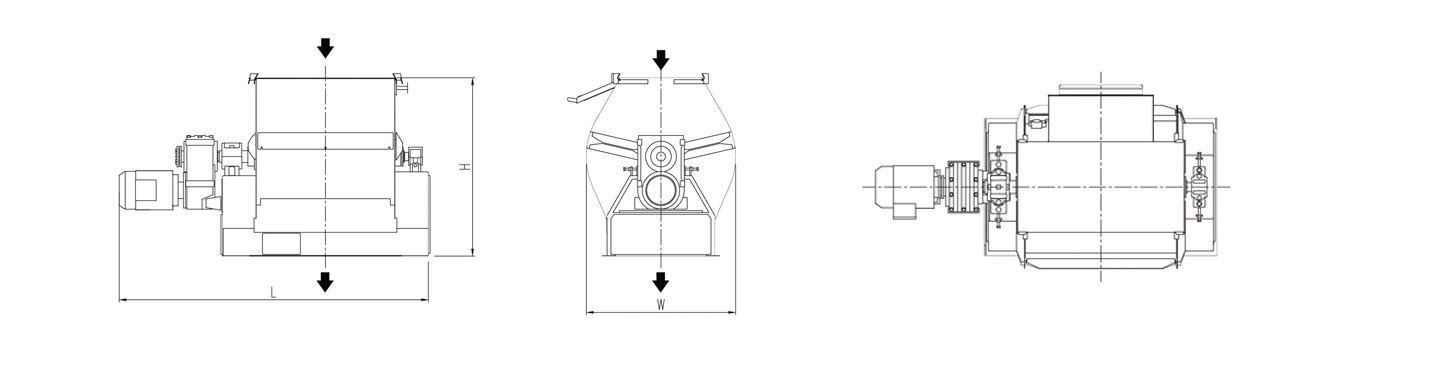

Outline size L×W×H(mm) |
| DHJ-0.3A | 0.3 | 150 | 600 | 1822×840×1034 |
| DHJ-1A | 1 | 500 | 1150 | 2578×1262×1504 |
| DHJ-2A | 2 | 1000 | 2000 | 2957×1564×1854 |
| DHJ-4A | 4 | 2000 | 3800 | 3609×1968×2345 |
| Model | Mixing time (s) |
Mixing homogeneity (cv.%) |
Power (kw) |
||||||
| DHJ-0.3A | 90s mix time depends on materials |
≤5 | 4 | If liquid addition, material density ≤0.6×103kg/m³ | |||||
| 5.5 | If premix or adding with liquid, material density ＞0.6×103kg/m³ | ||||||||
| DHJ-1A | 11 | No liquid addition, material density≤0.6×103kg/m³ | |||||||
| 15 | If adding of premix or adding with liquid, material density ＞0.6×103kg/m³ | ||||||||
| DHJ-2A | 15 | No liquid addition, material density≤0.6×103kg/m³ | |||||||
| 22 | If adding of premix or adding with liquid, material density ＞0.6×103kg/m³ | ||||||||
| DHJ-4A | 22 | No liquid addition, material density≤0.6×103kg/m³ | |||||||
| 37 | If adding of premix or adding with liquid, material density ＞0.6×103kg/m³ | ||||||||
