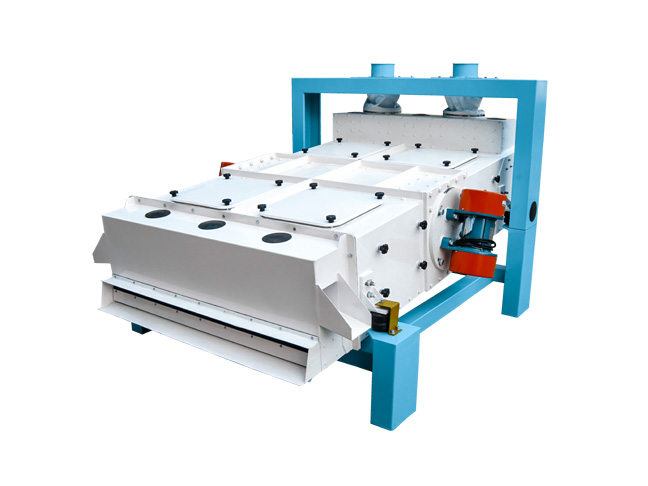

Vibro grain separator ZDS is suitable for pre-cleaning at in-take or within the first cleaning section. The sieve frames can be equipped with different openings according to the wheat origin and impurity level.

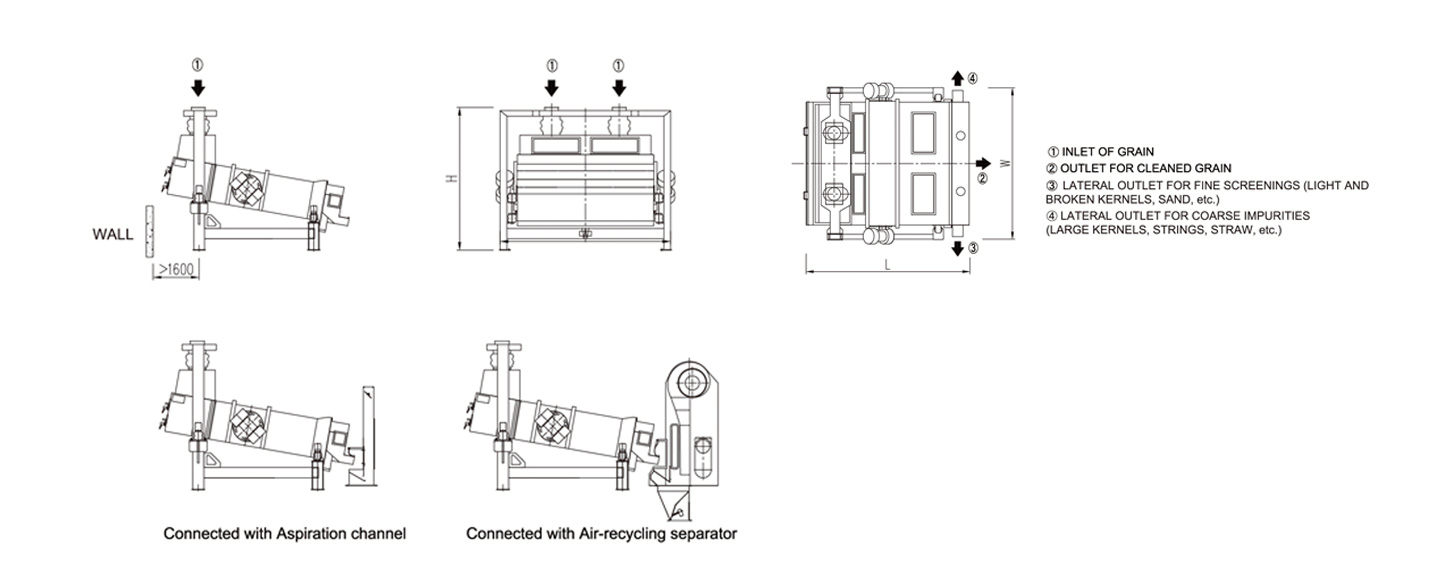

The machine is normally equipped with a vertical aspirator channel at the outlet to separate the dust from the raw material. The big and small foreign impurities will be removed from the machine via separate outlets. Simple with small footprint, high cleaning efficiency and low power consumption.
| Model | Capacity(wheat) (t/h) |
Power (kw) |
Air Vol. (aspiration channel) (m³/min) |
Weight (kg) |
Sieve size (W×L) (mm) |
Outline size L×W×H (mm) |
| ZDS-100/150 | 12/37.5 | 2×0.37 | 60 | 620 | 1000×1500 | 2180×1563×1673 |
| ZDS-100/200 | 15/45 | 2×0.37 | 75 | 720 | 1000×2000 | 2675×1563×1823 |
| ZDS-150/150 | 15/45 | 2×0.55 | 100 | 935 | 1500×1500 | 2180×2115×1723 |
| ZDS-150/200 | 20/60 | 2×0.55 | 115 | 1040 | 1500×2000 | 2675×2115×1823 |
