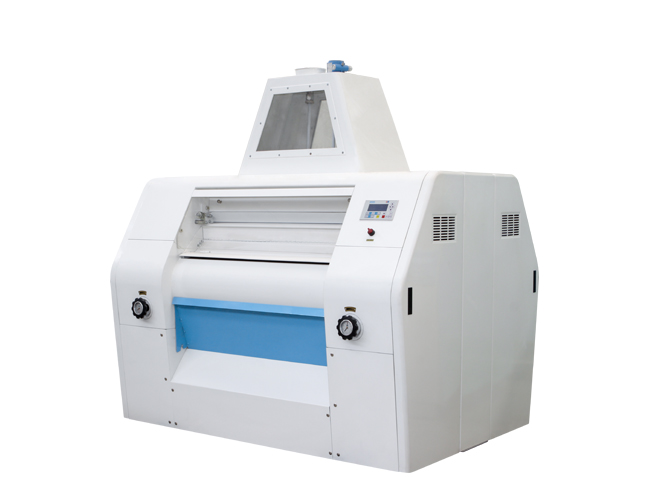

Rollermill DMFT is the core equipment in milling process. Each unit is composed of two pairs of grinding rolls, divided into a fast and slow roll. Single four (4) rollermill stand or double eight (8) roller. Automatic variable speed feed roll. During operation, the two rolls rotate at different speeds in opposite direction to form a shear effect thereby peeling the wheat or grinding the semolina. The roller mill has a casting base structure which is stable and low in noise during operation. Material contact parts are SST 304.
| Model | Roller(D×L) (mm) |
Roll dia. (mm) |
Fast roll speed (r/min) |
Speed ratio (fast roller/slow roller) |
Feed roll speed ratio | Power one (1) side | Pulley | Air pressure (Mpa) |
Weight (kg) |
Outline size L×W×H (mm) |
||
| Motor | Power (kw) |
Dia. (mm) |
Groove | |||||||||
| DMFT25/1250 | Φ250×1250 | Φ250-Φ230 | 450-650 | 1.25:1 1.5:1 2:1 2.5:1 | 1:1 1.4:1 2:1 | 6 pole | 37,30,22, 18.5,15,11, 7.5,5.5 |
Φ360 | 15N(5V)model 6 groove 4 groove | 0.6 | 3800 | 2060×1422×1997 |
| DMFT25/1000 | Φ250×1000 | 3200 | 1810×1422×1997 | |||||||||
| DMFT25/800 | Φ250×800 | 2700 | 1610×1422×1997 | |||||||||
