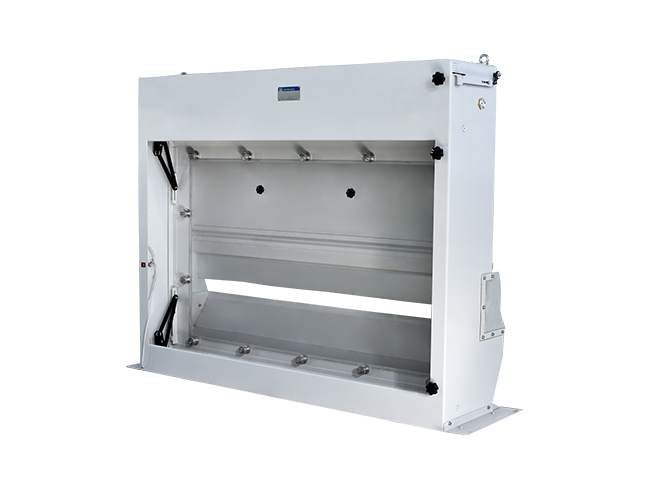

Vertical aspirator CXFD is utilized for cleaning raw materials in all kinds of food processing plants and feed plants. It is suitable for separating dust, husk, particles and light impurities from wheat, rye, oats, barley, soybean, peanut, corn, cocoa beans and other granular materials. Since this aspirator is a open type it needs to be connected with an air jet filter with fan.
a. Through the observation window on the wallboard behind the rack, operator can observe the air flow effect on the material; air volume can be adjusted for best separation effect.
b. Feeding the adjusting device. According to the volume of incoming materials, adjust the space of the air adjusting plate and uniform material plate to improve the separation effect.
| Model | Capacity(t/h) | Aspiration (m³/min) | Weight (kg) |
Outline size L×W×H(mm) |
||
| Pre-clean | Clean | Pre-clean | Clean | |||
| CXFD-80 | 30 | 12.5 | 72 | 40 | 110 | 980×575×1445 |
| CXFD-100 | 50 | 16 | 90 | 60 | 125 | 1180×575×1445 |
| CXFD-125 | 75 | 20 | 115 | 75 | 145 | 1430×575×1445 |
| CXFD-150 | 100 | 24 | 135 | 90 | 170 | 1680×575×1445 |
| CXFD-180 | 120 | 28 | 162 | 40 | 200 | 1980×575×1445 |
| CXFD-200 | 135 | 32 | 180 | 120 | 215 | 2180×575×1445 |
