This SINGLE-SPOUT PACKER consists of a feeding screw conveyor, sensor, bag clamp holder, posser, sewing machine, bag conveyor, and electronic and pneumatic control units. It is widely used for the automatic weighing and packing of powdery materials, enabling high-speed operations with precise target weight control. The system supports filling, sewing (with operator assistance), and conveying. Its advanced control system ensures high accuracy, stable performance, and reliable operation in demanding industrial environments.

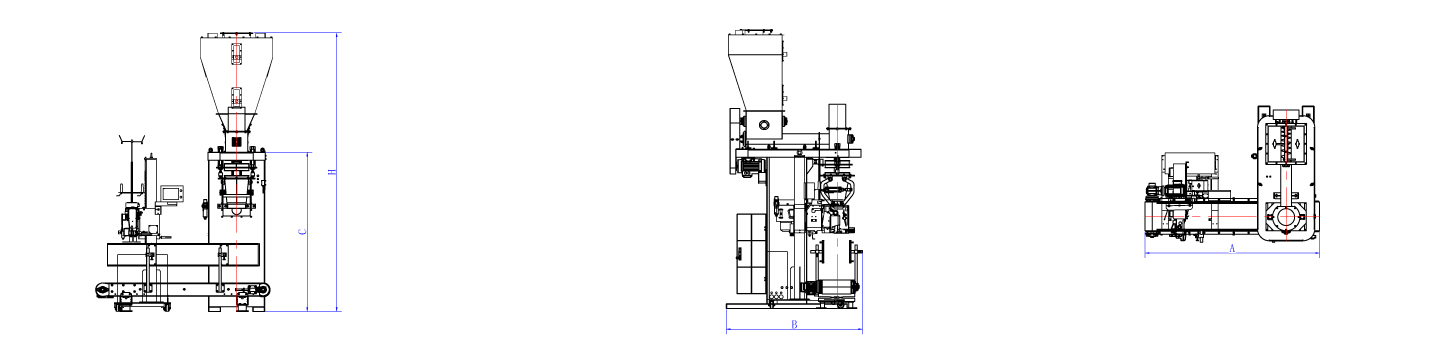

| Model | Bag Weight (kg) | Power (kW) | Capacity (bag/h) | Accuracy (%) | Air Pressure (MPa) | Air Consumption (m³/h) | Dimensions (mm) | |||
| A | B | C | H | |||||||
| DBZW-10 | 2–10 | 2.2+0.75+0.37 | 320–350 | ±0.2 | 5–6 | 2.4–3.6 | 2175 | 1579 | 1705 | 3219 |
| DBZW-25 | 15–25 | 3+0.75+0.37 | 250–300 | ±0.2 | 5–6 | 2.4–3.6 | 2175 | 1699 | 1985 | 3469 |
| DBZW-50 | 25–50 | 4+0.75+0.37 | 260 | ±0.2 | 5–6 | 2.4–3.6 | 3083 | 1805 | 2055 | 3609 |
