This LOW PRESSURE JET FILTER is suitable for industrial applications requiring dust separation in low-pressure environments. It effectively removes airborne particles to maintain clean air quality and protect downstream equipment. Designed for reliable performance, it supports continuous operation in grain, flour, and feed milling systems.

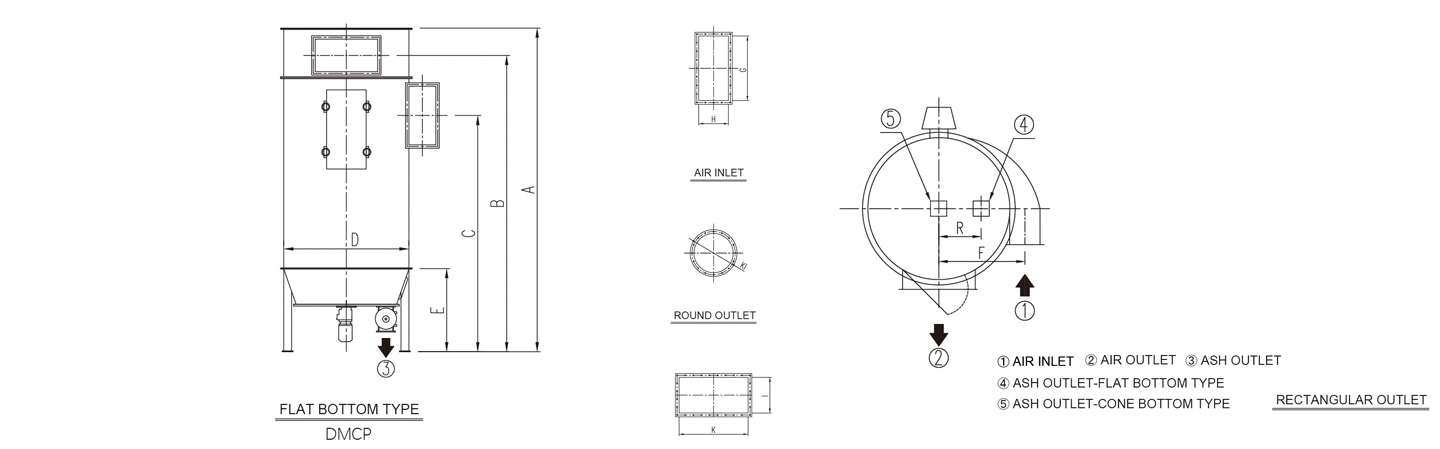

| Model | Sleeve Length (mm) | Filtration Area (m²) | Filtration Capacity (m³/h) | A (mm) | B (mm) | C (mm) | D (mm) | H×G (mm) | KI (mm) | Air Consumption (m³/min) | Pressure (bar) | Air lock (kW) | Scraper (kW) |
| DMCP-26/18 | 1800 | 16.9 | 2034–5085 | 3378 | 3093 | 2504 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 | 0.75 |
| DMCP-26/20 | 2000 | 18.9 | 2269–5672 | 3578 | 3293 | 2704 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 | 0.75 |
| DMCP-26/24 | 2400 | 22.8 | 2739–6848 | 3978 | 3696 | 3104 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 | 0.75 |
| DMCP-39/18 | 1800 | 25.4 | 3051–7627 | 3443 | 3158 | 2449 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 | 0.75 |
| DMCP-39/20 | 2000 | 28.4 | 3403–8509 | 3643 | 3358 | 2649 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 | 0.75 |
| DMCP-39/24 | 2400 | 34.2 | 4109–10272 | 4043 | 3758 | 3049 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 | 0.75 |
| DMCP-52/18 | 1800 | 33.9 | 4068–10169 | 3443 | 3158 | 2399 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 0.75 | 1.1 |
| DMCP-52/20 | 2000 | 37.8 | 4538–11345 | 3643 | 3358 | 2599 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 0.75 | 1.1 |
| DMCP-52/24 | 2400 | 45.7 | 5478–13696 | 4043 | 3758 | 2999 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 0.75 | 1.1 |
| DMCP-78/18 | 1800 | 50.8 | 6101–15254 | 3443 | 3158 | 2376 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 0.75 | 1.1 |
| DMCP-78/20 | 2000 | 56.7 | 6807–17017 | 3643 | 3358 | 2576 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 0.75 | 1.1 |
| DMCP-78/24 | 2400 | 68.5 | 8218–20544 | 4043 | 3758 | 2976 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 0.75 | 1.1 |
| DMCP-104/18 | 1800 | 67.8 | 8135–20338 | 3443 | 3158 | 2351 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 0.75 | 1.5 |
| DMCP-104/20 | 2000 | 75.6 | 9076–22689 | 3643 | 3358 | 2551 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 0.75 | 1.5 |
| DMCP-104/24 | 2400 | 91.3 | 10957–27392 | 4043 | 3758 | 2951 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 0.75 | 1.5 |
| DMCP-130/18 | 1800 | 84.7 | 10169–25423 | 3443 | 3158 | 2391 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 0.75×2 | 1.5 |
| DMCP-130/20 | 2000 | 94.5 | 11345–28362 | 3643 | 3358 | 2591 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 0.75×2 | 1.5 |
| DMCP-130/24 | 2400 | 114.1 | 13696–34240 | 4043 | 3758 | 2919 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 0.75×2 | 1.5 |
| DMCP-156/18 | 1800 | 101.7 | 12203–30507 | 3528 | 3243 | 2369 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 0.75×2 | 1.5 |
| DMCP-156/20 | 2000 | 113.4 | 13614–34034 | 3728 | 3553 | 2569 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 0.75×2 | 1.5 |
| DMCP-156/24 | 2400 | 137 | 16435–41088 | 4128 | 3843 | 2969 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 0.75×2 | 1.5 |
