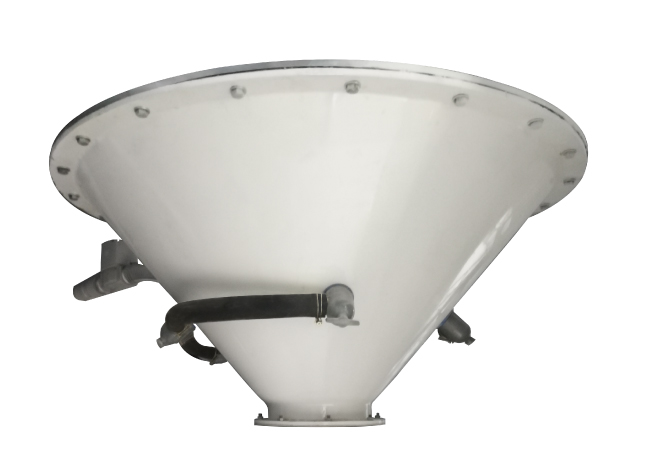

This FLUIDIZER DISCHARGER uses aeration to ensure smooth discharge of materials from silos, making it widely applicable in flour mills and grain processing plants. By introducing air at the bottom, it keeps the material in a fluidized state, preventing arching and blockages while allowing continuous and uniform flow. With a compact design and easy installation, it is suitable for flour, wheat, starch, and other powder materials—an essential component for improving silo discharge efficiency and system stability.

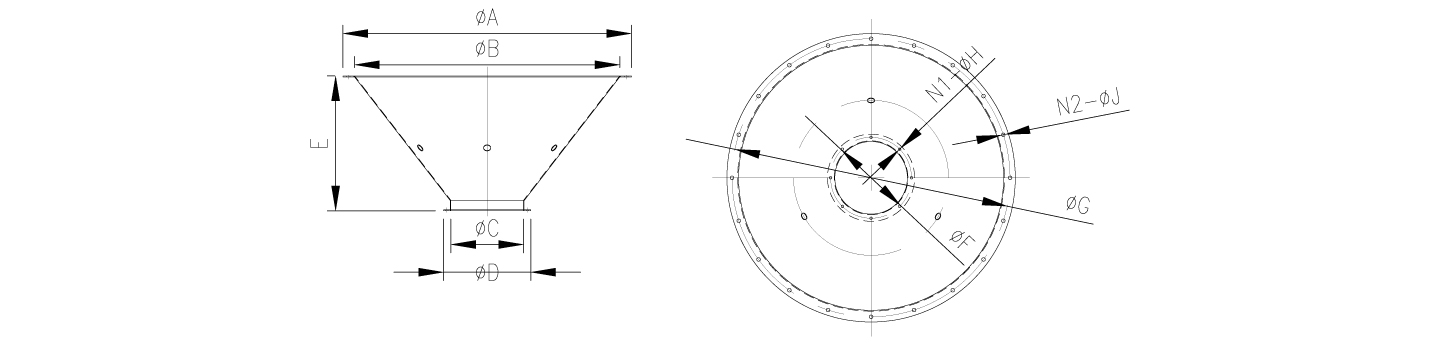

| Model | Air Pressure (MPa) | Air Consumption (m³/h) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | N1 (pcs) | H (mm) | N2 (pcs) | J (mm) |
| LHCC-130/35 | 0.1–0.2 | 150–240 | 1390 | 1278 | 350 | 420 | 650 | 390 | 1340 | 8 | 12 | 20 | 18 |
| LHCC-130/30 | 0.1–0.2 | 150–240 | 1390 | 1270 | 300 | 380 | 628 | 350 | 1330 | 8 | 14 | 20 | 18 |
| LHCC-160/30 | 0.1–0.2 | 200–320 | 1732 | 1600 | 300 | 380 | 830 | 350 | 1680 | 8 | 14 | 30 | 27 |
| LHCC-180/30 | 0.1–0.2 | 200–320 | 1890 | 1768 | 300 | 380 | 928 | 350 | 1830 | 8 | 14 | 32 | 27 |
