This DOUBLE-SPOUT PACKER is composed of a feeding screw conveyor, sensor, bag clamp holder, posser, sewing machine, bag conveyor, and electronic and pneumatic control units. It is widely used for the automatic weighing and packing of powdery materials, enabling high-speed operations with precise target weight control. The system supports filling, sewing (with operator assistance), and conveying, with double spouts, it reduces operator waiting time and significantly boosts packing speed. The control system ensures high accuracy and reliable performance.

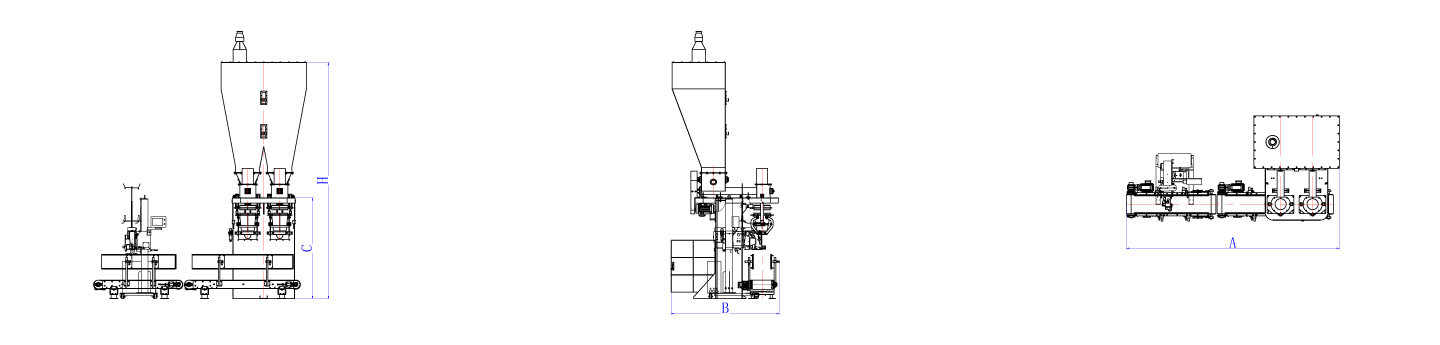

| Model | Bag Weight (kg) | Power (kW) | Maximum (bag/h) | Accuracy (%) | Air Pressure (MPa) | Air Consumption (m³/h) | Dimensions (mm) | |||
| A | B | C | H | |||||||
| SBZW-10 | 5–10 | 2.2×2+0.55×2+0.37 | 600 | ±0.2 | 0.5–0.6 | 4.8–7.2 | 3091 | 1578 | 1705 | 3320 |
| SBZW-25 | 15–25 | 3×2+0.75×2+0.37 | 500 | ±0.2 | 0.5–0.6 | 4.8–7.2 | 3391 | 2008 | 1925 | 4506 |
| SBZW-50 | 40–50 | 4×2+0.75×2+0.37 | 400 | ±0.2 | 0.5–0.6 | 4.8–7.2 | 3837 | 2331 | 2025 | 4626 |
