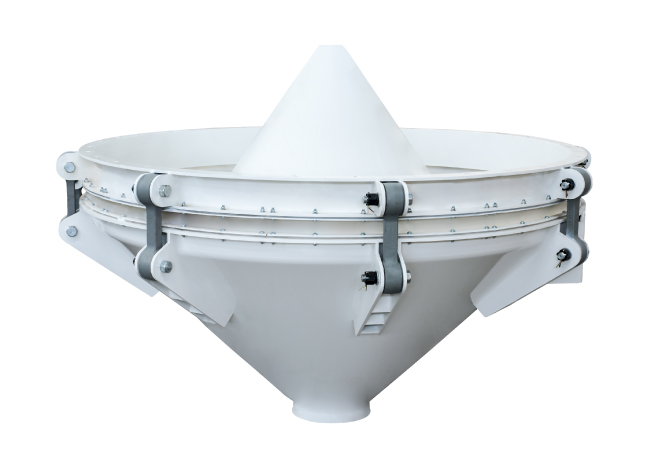

This VIBRO DISCHARGER is a feeding device installed under the bin bottom to prevent material bridging and ensure a consistent feeding rate. Its vibration-driven design promotes smooth material flow, especially for powdery or granular substances. Different model configurations are available to suit a variety of products and processing requirements, making it a flexible solution for flour, feed, and grain milling systems.
| Model | Power (kW) | A (mm) | B (mm) | C (mm) | D (mm) | E (Number of Holes) | F (Φmm) | G (mm) |
| ZCCD-100/30 | 0.25 | 1130 | 1080 | 300 | 650 | 20 | 27 | 1000 |
| ZCCD-130/30 | 0.7 | 1430 | 1380 | 300 | 700 | 28 | 27 | 1300 |
| ZCCD-130/50 | 0.7 | 1430 | 1380 | 500 | 700 | 28 | 27 | 1300 |
| ZCCD-160/30 | 0.7 | 1732 | 1680 | 300 | 850 | 30 | 27 | 1600 |
| ZCCD-160/50 | 0.7 | 1732 | 1680 | 500 | 850 | 30 | 27 | 1600 |
| ZCCD-180/50 | 0.7 | 1932 | 1880 | 500 | 950 | 40 | 27 | 1800 |
| ZCCD-200/50 | 0.7 | 2132 | 2080 | 500 | 1050 | 40 | 27 | 2000 |
| ZCCD-160/65 | 0.7 | 1732 | 1680 | 500 | 850 | 30 | 27 | 1600 |
| ZCCD-180/75 | 0.7 | 1932 | 1880 | 500 | 950 | 40 | 27 | 1800 |
| ZCCD-200/75 | 0.7 | 2132 | 2080 | 500 | 1050 | 40 | 27 | 2000 |
