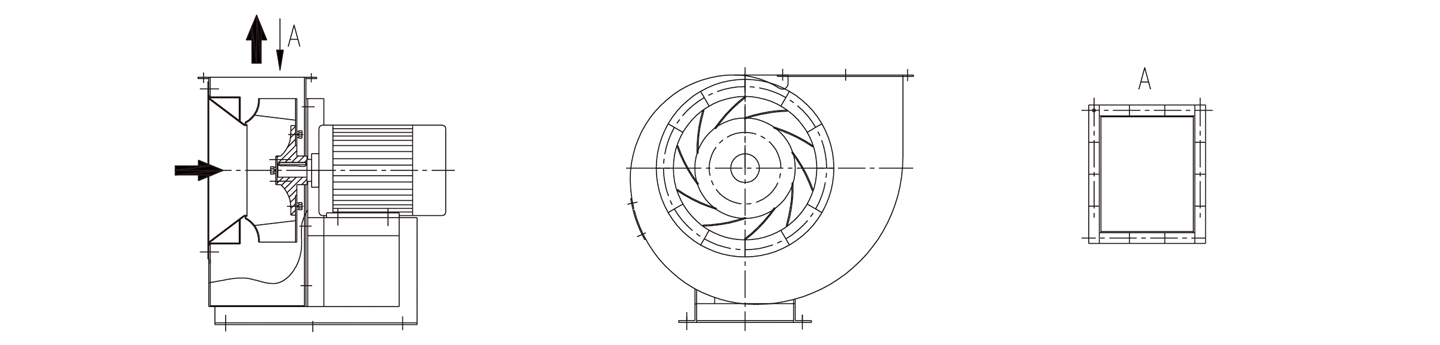

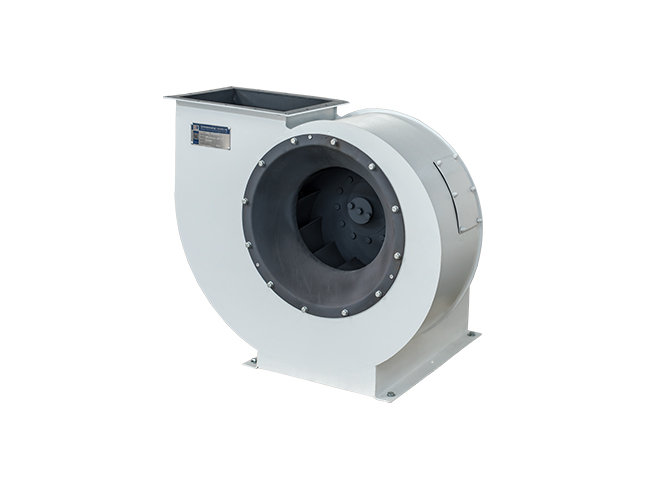

This MIDDLE PRESSURE FAN is constructed with compact carbon mild steel plates for both the rotor and casing. The rotor features optimized blade angles and radial-type blades, engineered to generate stable medium pressure for industrial applications. Dynamically balanced and mounted on a cast iron central hub, it is directly driven by the motor shaft. The entire unit is enclosed in a dust-proof casing to ensure reliable, efficient, and durable operation in demanding environments.
| Model | Capacity (m³/h) | Pressure (Pa) | Power (kW) | Rotational Speed (r/min) |
| ZFJ-5-48-4.5A | 3130–6540 | 2390–3300 | 7.5 | 2970 |
| ZFJ-5-48-5A | 4230–9005 | 2960–4250 | 11 | 2970 |
| ZFJ-5-48-5.6A | 6315–9030 | 4980–5360 | 18.5 | 2970 |
| ZFJ-5-48-5.6A | 9940–12570 | 3640–5360 | 22 | 2970 |
| ZFJ-5-48-6.3A | 8991–17897 | 4379–6604 | 30 | 2970 |
