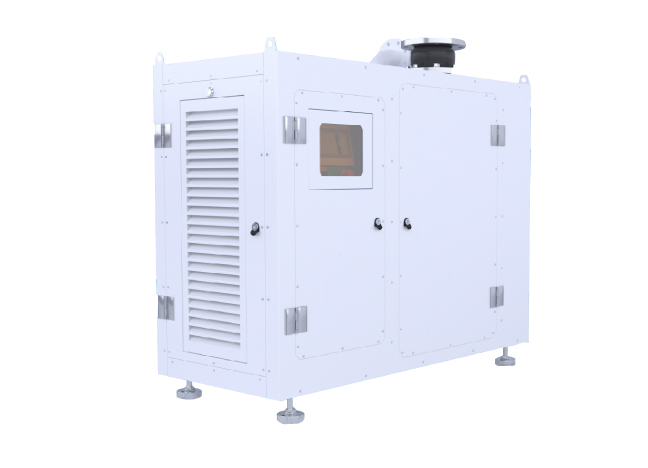

This MAGLEV TURBO BLOWER utilizes magnetic levitation bearing technology, eliminating frictional loss from traditional mechanical bearings and enhancing equipment reliability and stability. Its permanent magnet motor, designed without a stator coil, operates at lower rotor temperatures and achieves up to 97% efficiency compared to conventional motors. The three-element flow impeller minimizes vortex loss for high aerodynamic performance. With no bearings at either end of the motor shaft, the blower features contact-free magnetic suspension, requiring no lubrication and producing lower vibration. Noise levels are 15–20dB lower than those of a Roots blower, and outlet airflow temperatures are reduced by 10–20°C, resulting in lower moisture loss. Overall, the system delivers up to 15% power savings.

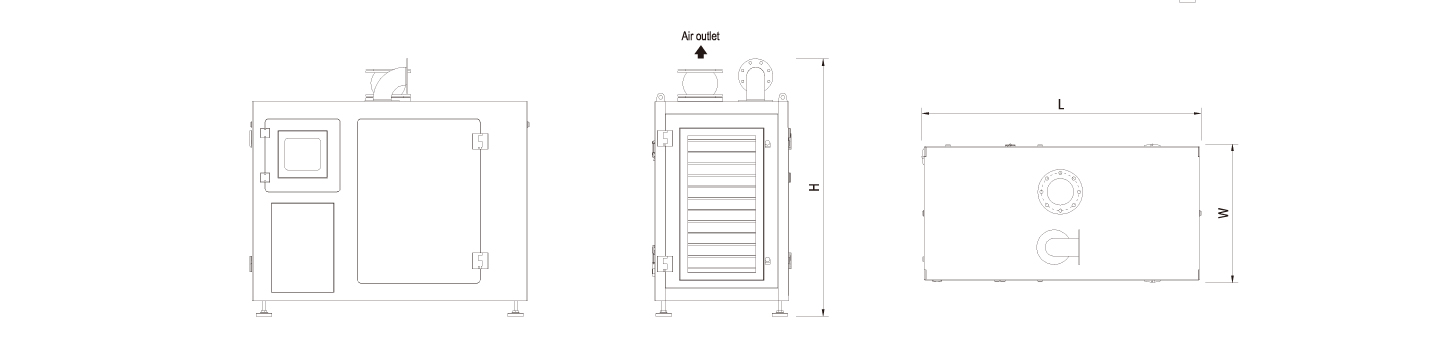

| Model | Capacity (m³/min) | Pressure (kPa) | Power (kW) | Air Outlet (DN) | Weight (kg) | Dimensions (L×W×H) (mm) |
| CXFFJ-30 | 17–28 | 80–40 | 22 | 150 | 735 | 1750×850×1640 |
| CXFFJ-50 | 19–48 | 120–40 | 37 | 150 | 735 | 1750×850×1640 |
| CXFFJ-75 | 29–75 | 120–40 | 55 | 200 | 967 | 1830×950×1740 |
| CXFFJ-100 | 40–100 | 120–40 | 75 | 200 | 967 | 1830×950×1740 |
| CXFFJ-125 | 50–125 | 120–40 | 95 | 250 | 1040 | 1950×1100×1870 |
| CXFFJ-150 | 53–150 | 120–40 | 110 | 250 | 1040 | 1950×1100×1870 |
| CXFFJ-200 | 60–200 | 120–40 | 150 | 300 | 1235 | 2350×1250×2160 |
| CXFFJ-250 | 98–245 | 120–40 | 185 | 400 | 1450 | 2380×1305×2580 |
