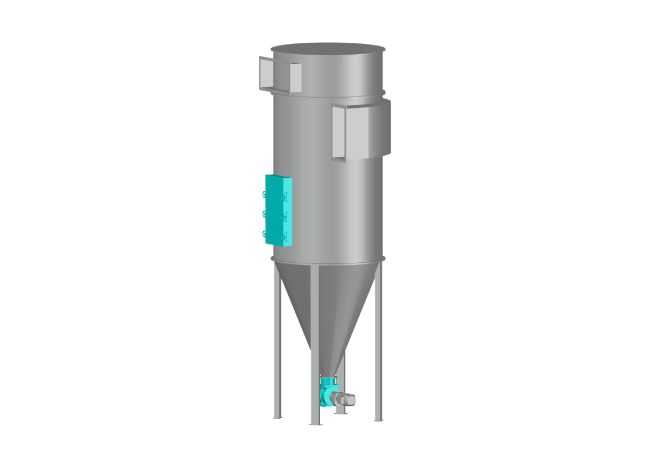

This LOW PRESSURE JET FILTER is designed for industrial applications that require dust separation in low-pressure environments. It effectively extracts airborne particles to maintain clean air quality and protect equipment. Suitable for continuous operation, it supports reliable performance across grain, flour, and feed milling systems.

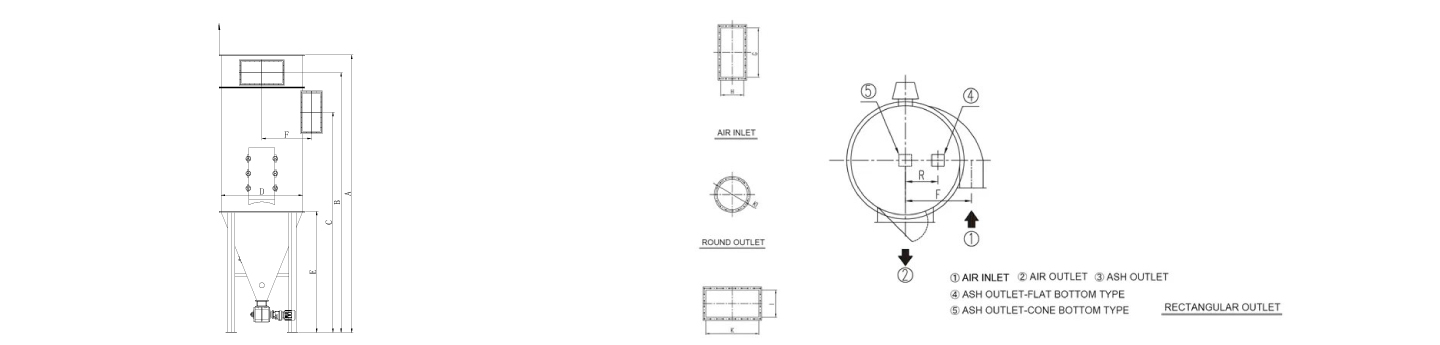

| Model | Sleeve Length (mm) | Filtration Area (m²) | Filtration Capacity (m³/h) | A (mm) | B (mm) | C (mm) | D (mm) | H×G (mm) | KI (mm) | Air Consumption (m³/min) | Pressure (bar) | Air lock (kW) |
| DMCZ-26/20 | 2000 | 18.9 | 2269–5672 | 4436 | 4154 | 3511 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 |
| DMCZ-26/24 | 2400 | 22.8 | 2739–6848 | 4836 | 4551 | 3911 | 1140 | 275×500 | Φ450 | 0.26 | 0.5 | 0.75 |
| DMCZ-39/18 | 1800 | 25.4 | 3051–7627 | 4551 | 5266 | 3556 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 |
| DMCZ-39/20 | 2000 | 28.4 | 3403–8509 | 3751 | 4466 | 3756 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 |
| DMCZ-39/24 | 2400 | 34.2 | 4109–10272 | 5151 | 4866 | 4156 | 1370 | 290×640 | Φ500 | 0.39 | 0.5 | 0.75 |
| DMCZ-52/18 | 1800 | 33.9 | 4068–10169 | 4842 | 4557 | 3797 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 1.1 |
| DMCZ-52/20 | 2000 | 37.8 | 4538–11345 | 5042 | 4757 | 3997 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 1.1 |
| DMCZ-52/24 | 2400 | 45.7 | 5478–13696 | 5442 | 5157 | 4397 | 1580 | 340×740 | 790×410 | 0.52 | 0.5 | 1.1 |
| DMCZ-78/18 | 1800 | 50.8 | 6101–15254 | 5200 | 4915 | 4133 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 1.1 |
| DMCZ-78/20 | 2000 | 56.7 | 6807–17017 | 5400 | 4954 | 4333 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 1.1 |
| DMCZ-78/24 | 2400 | 68.5 | 8218–20544 | 5800 | 5354 | 4733 | 1840 | 485×785 | 845×460 | 0.78 | 0.5 | 1.1 |
| DMCZ-104/18 | 1800 | 67.8 | 8135–20338 | 5449 | 5165 | 4357 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 1.5 |
| DMCZ-104/20 | 2000 | 75.6 | 9076–22689 | 5649 | 6365 | 4557 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 1.5 |
| DMCZ-104/24 | 2400 | 91.3 | 10957–27392 | 6049 | 5765 | 4957 | 2020 | 520×835 | 1090×460 | 1.04 | 0.5 | 1.5 |
| DMCZ-130/18 | 1800 | 84.7 | 10169–25423 | 5903 | 5618 | 4778 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 1.5 |
| DMCZ-130/20 | 2000 | 94.5 | 11345–28362 | 6103 | 5818 | 4978 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 1.5 |
| DMCZ-130/24 | 2400 | 114.1 | 13696–34240 | 6503 | 6218 | 5378 | 2350 | 530×900 | 1200×470 | 1.3 | 0.5 | 1.5 |
| DMCZ-156/18 | 1800 | 101.7 | 12203–30507 | 6026 | 5741 | 4866 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 1.5 |
| DMCZ-156/20 | 2000 | 113.4 | 13614–34034 | 6226 | 5941 | 5066 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 1.5 |
| DMCZ-156/24 | 2400 | 137 | 16435–41088 | 6626 | 6341 | 5466 | 2440 | 550×970 | 1200×470 | 1.56 | 0.5 | 1.5 |
