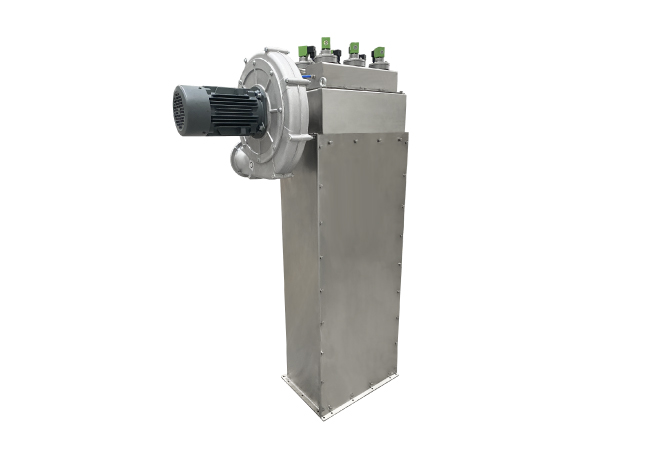

This INSERT FILTER is a compact, high-efficiency bag filter developed using advanced domestic and international technologies. It features pulse jet ash cleaning, delivering excellent dust removal performance, high air volume capacity, extended sleeve life, and low maintenance. Designed for safe and reliable operation, it is suitable for separating dust from gas streams below 80°C. Using clean, oil-free and water-free air for ash cleaning, the filter is ideal for food, grain, medicine, and hygiene industries. It is also applicable in metallurgy, chemical, cement, mining, and foundry sectors.
| Model | Sleeve Length (mm) |
Filtration Area (m²) |
Filtration Capacity (m³/h) |
Air Consumption (m³/min) |
Pressure (MPa) |
Fan (kW) |
Weight (kg) |
Dimensions (L×W×H) (mm) |
| CMCF-4/10 | 1000 | 1.4 | 168–336 | 0.016–0.32 | 0.2–0.4 | 0.75 | 110 | 867×459×1527 |
| CMCF-4/12 | 1200 | 1.7 | 204–409 | 0.016–0.32 | 0.2–0.4 | 0.75 | 115 | 867×459×1727 |
| CMCF-6/10 | 1000 | 2.1 | 252–505 | 0.016–0.32 | 0.2–0.4 | 1.1 | 138 | 1027×459×1527 |
| CMCF-6/12 | 1200 | 2.6 | 307–613 | 0.016–0.32 | 0.2–0.4 | 1.1 | 145 | 1027×459×1727 |
| CMCF-9/10 | 1000 | 3.2 | 378–757 | 0.016–0.32 | 0.2–0.4 | 1.5 | 185 | 962×663×1547 |
| CMCF-9/12 | 1200 | 3.8 | 460–920 | 0.016–0.32 | 0.2–0.4 | 1.5 | 200 | 962×663×1747 |
| CMCF-12/10 | 1000 | 4.5 | 540–1080 | 0.016–0.32 | 0.2–0.4 | 1.5 | 210 | 1187×729×1309 |
| CMCF-12/12 | 1200 | 5.1 | 613–1226 | 0.016–0.32 | 0.2–0.4 | 1.5 | 220 | 1187×729×1509 |
| CMCF-12/15 | 1500 | 6.5 | 776–1552 | 0.016–0.32 | 0.2–0.4 | 2.2 | 240 | 1187×729×1709 |
