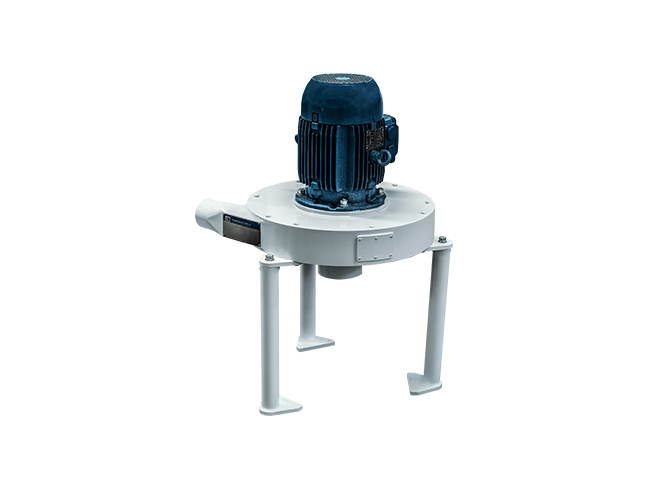

Impact Disruptor ZSF

Impact disruptor ZSF is to break down conglomerates of semolina which have been created during the head reduction grinding process. This can greatly assist the rollermill and plansifter operation by improving the flour release. The high speed disrupter breaks down the flakes of endosperm thereby ensuring flour is released hence separated within the plansifters to ensure targeted extraction is achieved.

Product description:

Model ZSF-43 ZSF-43A ZSF-51 ZSF-51A
Capacity (t/h) 1.5 2.5 4.0 2.0 3.0 4.5 1.0 1.7 2.8 2.0 2.4 3.2 4.0
Shaft speed (rpm) 2830 2890 2910 2830 2890 2910 2910 2910 2930 2910 2910 2930 2930
Impacting plate diameter (mm) 430 430 510 510
Round pin (pcs) 80 80 192 192
Square pin (pcs)     64 64
Power (kw) 3.0 4.0 5.5 4.0 5.5/7.5 7.5/11 5.5 7.5 11.0 5.5 7.5 11.0 15.0

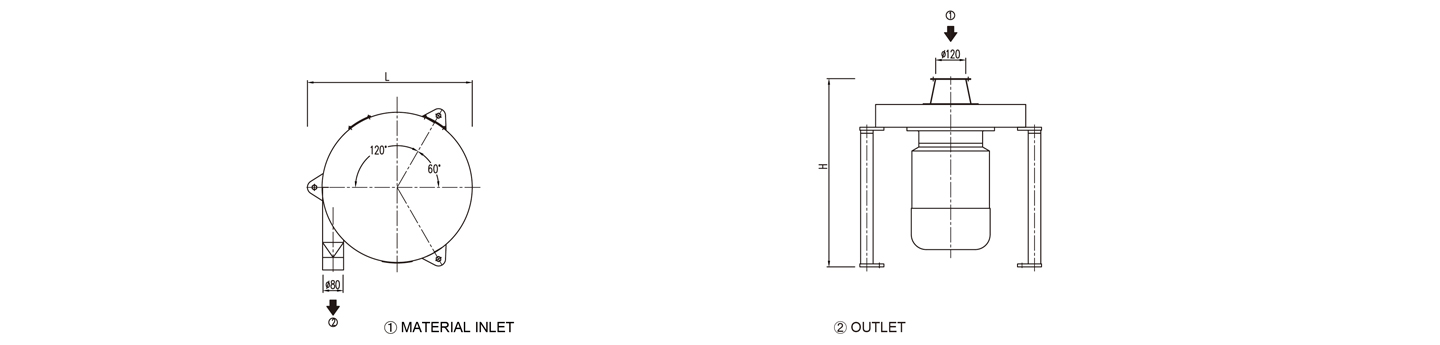

Outline size L×W×H (mm) 576×650×642 576×650×642 662×650×642 662×648×748 662×648×628 662×648v748
Outlet size (mm) 80 100 80 100
