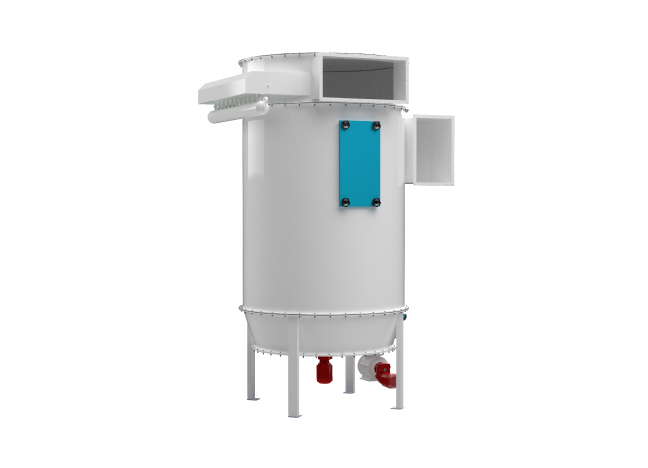

This HIGH PRESSURE JET FILTER is the latest product version in the air jet filter series, designed for industrial applications requiring dust separation in pressurized environments. It efficiently extracts airborne particles to maintain clean air quality and protect equipment. Engineered for high-performance filtration, it supports continuous operation in demanding processing conditions.

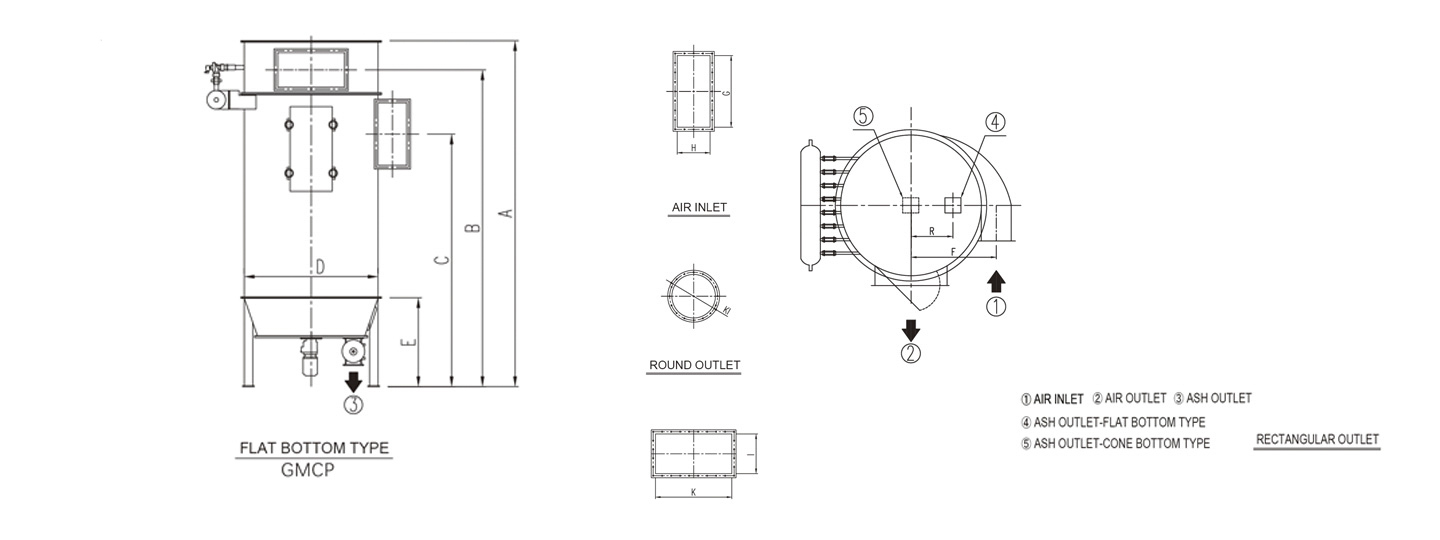

| Model | Sleeve Length (mm) | Filtration Area (m²) | Filtration Capacity (m³/h) | A (mm) | B (mm) | C (mm) | D (mm) | H×G (mm) | KI (mm) | Air Consumption (m³/min) | Pressure (bar) | Air lock (kW) | Scraper (kW) |
| GMCP-26/18 | 1800 | 16.9 | 2034–5085 | 3378 | 3093 | 2504 | 1140 | 275×500 | Φ450 | 0.08 | 0.4–0.6 | 0.75 | 0.75 |
| GMCP-26/20 | 2000 | 18.9 | 2269–5672 | 3578 | 3293 | 2704 | 1140 | 275×500 | Φ450 | 0.08 | 0.4–0.6 | 0.75 | 0.75 |
| GMCP-26/24 | 2400 | 22.8 | 2739–6848 | 3978 | 3696 | 3104 | 1140 | 275×500 | Φ450 | 0.08 | 0.4–0.6 | 0.75 | 0.75 |
| GMCP-39/18 | 1800 | 25.4 | 3051–7627 | 3443 | 3158 | 2449 | 1370 | 290×640 | Φ500 | 0.13 | 0.4–0.6 | 0.75 | 0.75 |
| GMCP-39/20 | 2000 | 28.4 | 3403–8509 | 3643 | 3358 | 2649 | 1370 | 290×640 | Φ500 | 0.13 | 0.4–0.6 | 0.75 | 0.75 |
| GMCP-39/24 | 2400 | 34.2 | 4109–10272 | 4043 | 3758 | 3049 | 1370 | 290×640 | Φ500 | 0.13 | 0.4–0.6 | 0.75 | 0.75 |
| GMCP-52/18 | 1800 | 33.9 | 4068–10169 | 3443 | 3158 | 2399 | 1580 | 340×740 | 790×410 | 0.15 | 0.4–0.6 | 0.75 | 1.1 |
| GMCP-52/20 | 2000 | 37.8 | 4538–11345 | 3643 | 3358 | 2599 | 1580 | 340×740 | 790×410 | 0.15 | 0.4–0.6 | 0.75 | 1.1 |
| GMCP-52/24 | 2400 | 45.7 | 5478–13696 | 4043 | 3758 | 2999 | 1580 | 340×740 | 790×410 | 0.15 | 0.4–0.6 | 0.75 | 1.1 |
| GMCP-78/18 | 1800 | 50.8 | 6101–15254 | 3443 | 3158 | 2376 | 1840 | 485×785 | 845×460 | 0.17 | 0.4–0.6 | 0.75 | 1.1 |
| GMCP-78/20 | 2000 | 56.7 | 6807–17017 | 3643 | 3358 | 2576 | 1840 | 485×785 | 845×460 | 0.17 | 0.4–0.6 | 0.75 | 1.1 |
| GMCP-78/24 | 2400 | 68.5 | 8218–20544 | 4043 | 3758 | 2976 | 1840 | 485×785 | 845×460 | 0.17 | 0.4–0.6 | 0.75 | 1.1 |
| GMCP-104/18 | 1800 | 67.8 | 8135–20338 | 3443 | 3158 | 2351 | 2020 | 520×835 | 1090×460 | 0.21 | 0.4–0.6 | 0.75 | 1.5 |
| GMCP-104/20 | 2000 | 75.6 | 9076–22689 | 3643 | 3358 | 2551 | 2020 | 520×835 | 1090×460 | 0.21 | 0.4–0.6 | 0.75 | 1.5 |
| GMCP-104/24 | 2400 | 91.3 | 10957–27392 | 4043 | 3758 | 2951 | 2020 | 520×835 | 1090×460 | 0.21 | 0.4–0.6 | 0.75 | 1.5 |
| GMCP-130/18 | 1800 | 84.7 | 10169–25423 | 3443 | 3158 | 2391 | 2350 | 530×900 | 1200×470 | 0.49 | 0.4–0.6 | 0.75×2 | 1.5 |
| GMCP-130/20 | 2000 | 94.5 | 11345–28362 | 3643 | 3358 | 2591 | 2350 | 530×900 | 1200×470 | 0.49 | 0.4–0.6 | 0.75×2 | 1.5 |
| GMCP-130/24 | 2400 | 114.1 | 13696–34240 | 4043 | 3758 | 2919 | 2350 | 530×900 | 1200×470 | 0.49 | 0.4–0.6 | 0.75×2 | 1.5 |
| GMCP-156/18 | 1800 | 101.7 | 12203–30507 | 3528 | 3243 | 2369 | 2440 | 550×970 | 1200×470 | 0.5 | 0.4–0.6 | 0.75×2 | 1.5 |
| GMCP-156/20 | 2000 | 113.4 | 13614–34034 | 3728 | 3553 | 2569 | 2440 | 550×970 | 1200×470 | 0.5 | 0.4–0.6 | 0.75×2 | 1.5 |
| GMCP-156/24 | 2400 | 137 | 16435–41088 | 4128 | 3843 | 2969 | 2440 | 550×970 | 1200×470 | 0.5 | 0.4–0.6 | 0.75×2 | 1.5 |
