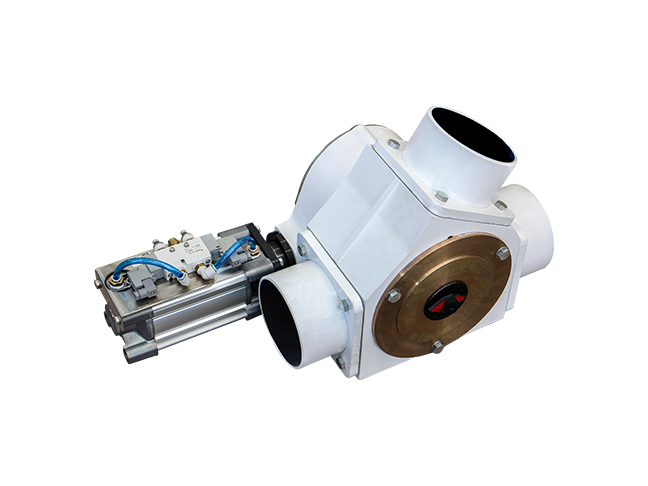

Two way valve SSLF is utilized to divert product at different points within a positive pressure blowline to a target bin. The valve design allows direction changes during product transfer using a cylindrical formed diverter gate can be moved pneumatically to the desired position. The diverter gate is fitted with two limit switches and a solenoid valve.The unit consists of a cast iron body, diverter plug of spherical graphite iron, sealing countersunk flanges with pneumatically operated cylinder for position change, elbow adapter with flange seals.
| Model | ΦI/ΦO Dia (mm) |
Angle | Temp. (℃) |
Pressure(Kpa) | Cylinder pressure (Kpa) |
Air cylinder | Outline size L×W×H(mm) |
|||||
| Neg. | Pos. | Dia./trip (mm) | Air pres. (Mpa) | |||||||||
| SSLF-60 | 60 | 60 | 100 | 50 | 100 | 400-600 | 500/100 | 0.4-0.6 | 550×270.5×252 | |||
| SSLF-80 | 80 | 500/100 | 570×270.5×252 | |||||||||
| SSLF-100 | 100 | 63/100 | 590×270.5×252 | |||||||||
| SSLF-125 | 125 | 80/125 | 650×278×294 | |||||||||
| SSLF-150 | 150 | 100/125 | 714×327.5×349 | |||||||||
| SSLF-180 | 180 | 100/125 | 767×376.5×416 | |||||||||
