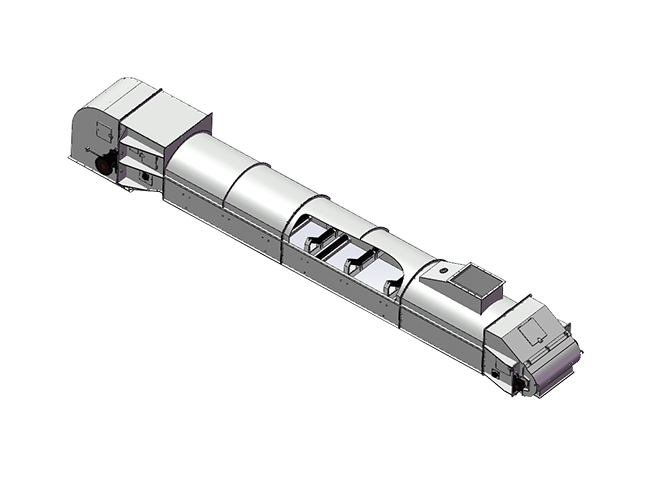

TDSG three-roller belt conveyor is traditional belt conveyor, utilized for conveying of granular and powdery materials horizontally or inclined.

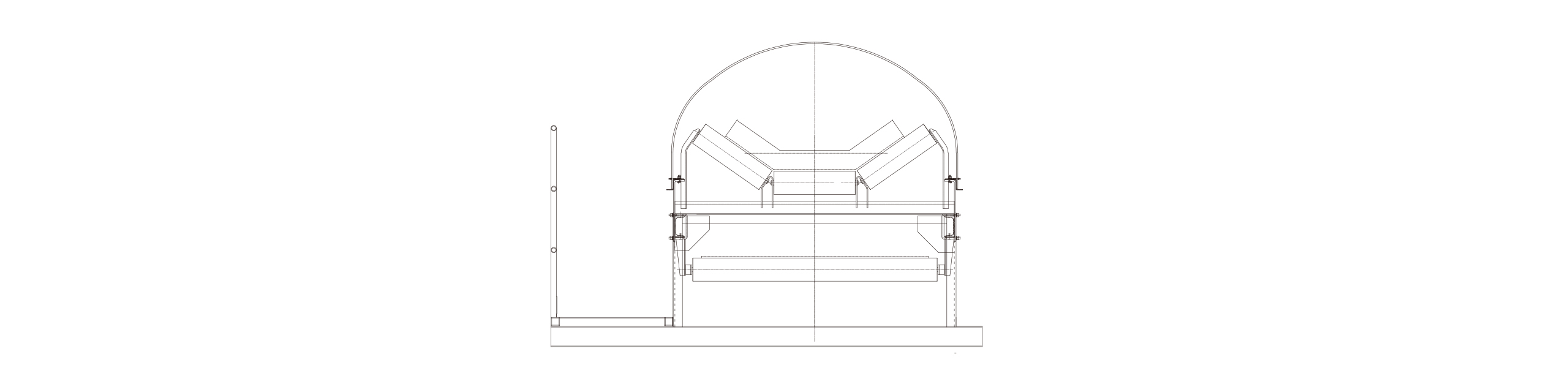

Tail section, middle section, head c/w driving unit, tensioning device, etc.
1. Simple structure; stable operation; long conveying distance.
2. Speed protection, alignment, emergency stop device, etc. to ensure stable operation and protect equipment.
3. Equipped with tail, middle section gravity tension etc. per actual design.
4. Top cover can be fast release or fixed.
| Model | Belt width(mm) | Roller qty of each row(pcs) | Belt speed(m/s) | Capacity (t/h) |
| TDSG-50 | 500 | 3 | 1.6~2 | 80~100 |
| TDSG-65 | 650 | 3 | 1.6~2.5 | 150~230 |
| TDSG-80 | 800 | 3 | 1.6~3.15 | 200~400 |
| TDSG-100 | 1000 | 3 | 2~3.15 | 500~800 |
| TDSG-120 | 1200 | 3 | 2~3.15 | 800~1200 |
| TDSG-140 | 1400 | 3 | 2~3.15 | 1000~1600 |
| TDSG-160 | 1600 | 3 | 2~3.15 | 1200~1800 |
