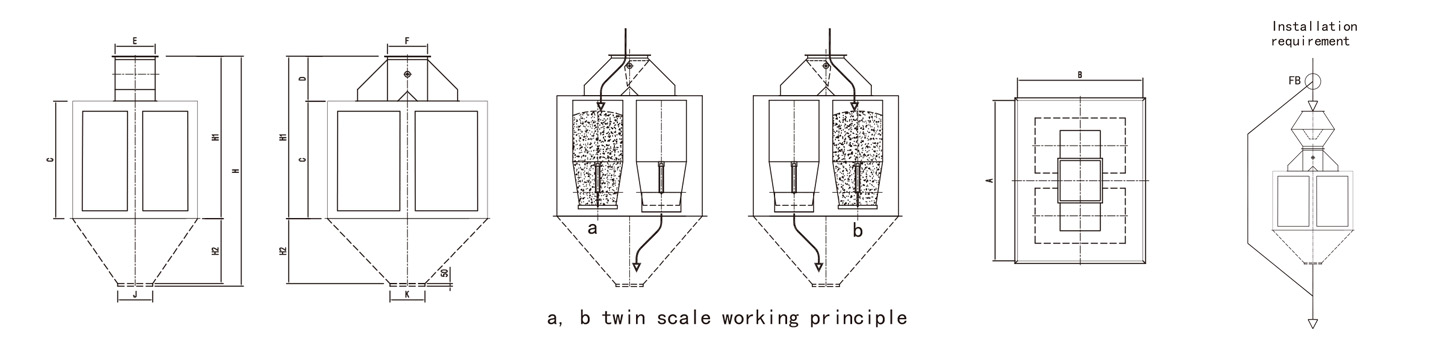

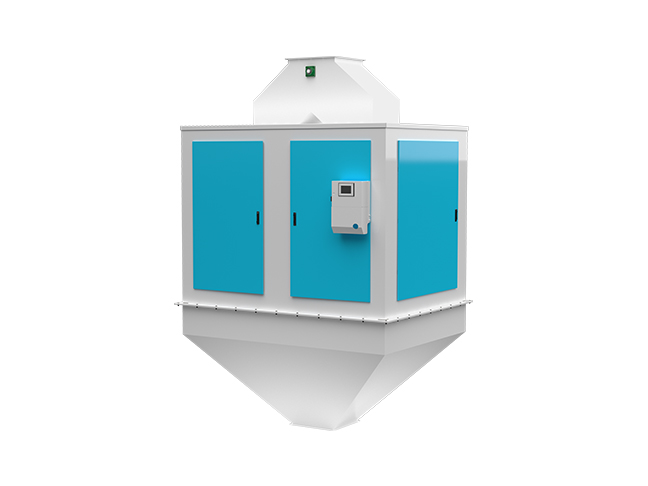

FSDC Granular flow scale is composed of a rack, feeding mechanism, twin weighing hopper, discharge structure, load cells, weighing instrument and control system. Utilized for on-line weighing of granular materials such as wheat, corn, soybeans, feed, chemical fertilizers etc. Low installation height with twin square weighing hopper in sequence. Buffer hopper not required. Weighing instrument with rich data display for operation with profibus module, weighing data and reports can be displayed real-time. Large weighing range (300-1200 T/H); High accuracy; stable performance and easy operation & maintenance.
| Model | Volume | Cycles time(number/h) | Hourly Flow(m³/h) | Wheat Flow(t/h) | Compressed Air(m³/h) | Suction Air(m³/min) |
| FSDC-4000x2 | 4000x2 | 200 | 1600 | 1200 | 36 | 35(Φ220) |
| FSDC-3350x2 | 3350x2 | 200-210 | 1340 | 1000 | 36 | 30(Φ220) |
| FSDC-3000x2 | 3000x2 | 200-220 | 1200 | 900 | 36 | 25(Φ220) |
| FSDC-2500x2 | 2500x2 | 220-240 | 1100 | 800 | 25 | 23(Φ200) |
| FSDC-2000x2 | 2000x2 | 220-240 | 880 | 600 | 25 | 20(Φ180) |
| FSDC-1500x2 | 1500x2 | 230-250 | 720 | 500 | 15 | 18(Φ180) |
| FSDC-1200x2 | 1200x2 | 230-250 | 580 | 400 | 15 | 15(Φ150) |
| FSDC-900x2 | 900x2 | 240-250 | 450 | 300 | 15 | 12(Φ120) |
