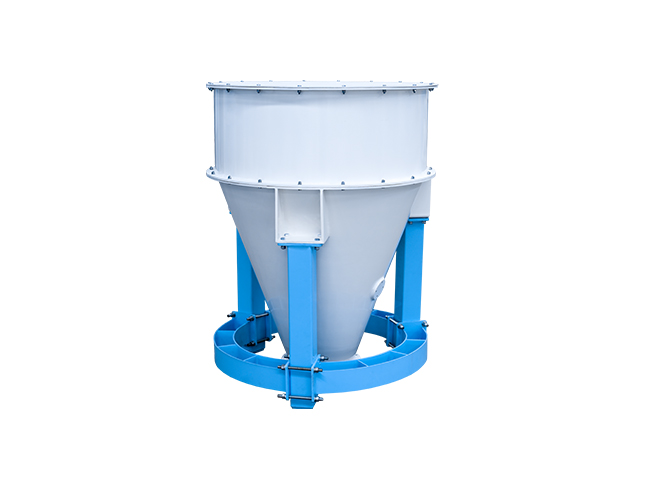

Batch Scale PLC

Batch scale PLC is mainly used for weighing the proportion of different material types, three (3) load cells with control box profibus protocol link to central PLC; suitable for material blending in flour, feed mills, chemical and building material industry.

Product description:

Model PLC-250 PLC-500 PLC-1000 PLC-2000
Capacity(kg/scale) 250 500 1000 2000

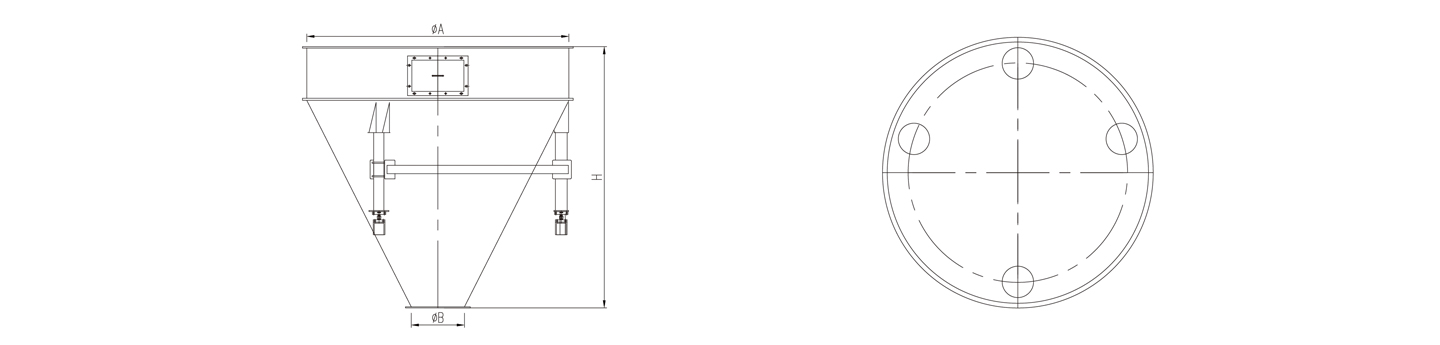

Outline size A×B×H (mm) 950×300×1560 1500×350×1850 1890×500×2300 2500×500×2500
Weighing Static ≤±0.1%
Accuracy Dynamic ≤±0.3%
Temp. range -10℃-40℃
Relative humidity <95%(Non condensation)
Air supply 0.4-0.6MPa
