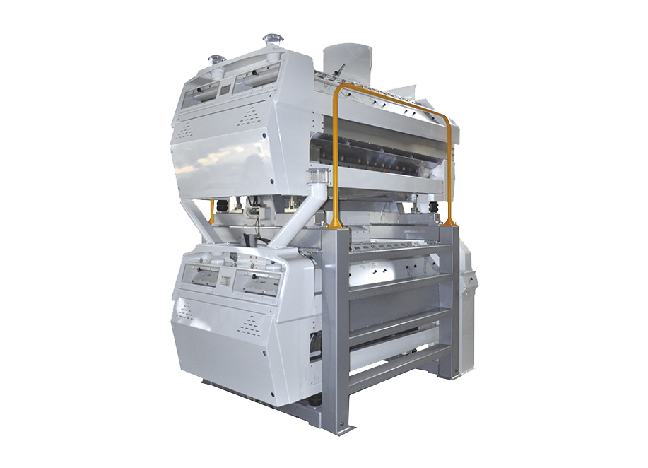

This PURIFIER is used to refine and classify semolina and middlings during the milling process, ensuring the production of high-grade, low-ash flour in modern mills. Its vibration-driven design integrates oscillation, airflow, and sifting to deliver precise separation and effective ash reduction. This combination enhances flour purity, consistency, and overall milling efficiency. With a double-deck structure, high throughput, and compact footprint, it offers automatic sieve cleaning, adjustable airflow, dust control, and easy maintenance—making it ideal for both new installations and mill upgrades.
| Model | Sieve Layers | Capacity (kg/h) |
Aspiration Volume (m³/min) |
Power (kW) |
Dimensions (L×W×H) (mm) |
|
| Coarse Semolina | Fine Semolina | |||||
| SQF-49×2×3 | 3 | (1400–2800)×2 | (600–1400)×2 | 80–140 | 0.25×4 | 2876×1736×3120 |
| SQF-53×2×3 | 3 | (1650–3380)×2 | (700–1680)×2 | 86–150 | 0.25×4 | 2876×1808×3279 |
