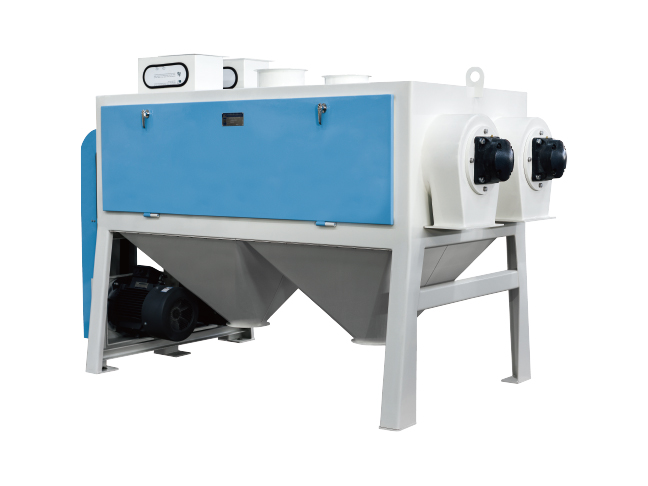

Horizontal Scourer WDM

WDM horizontal scourer is used in the cleaning section for the surface treatment of wheat. The machine can remove impurities and any adhering contamination such as dust, sand, earth lumps, small seeds, etc. By removing these items, the product sanitation can be improved. The removed dust and impurities are discharged separately through an outlet.

Product description:

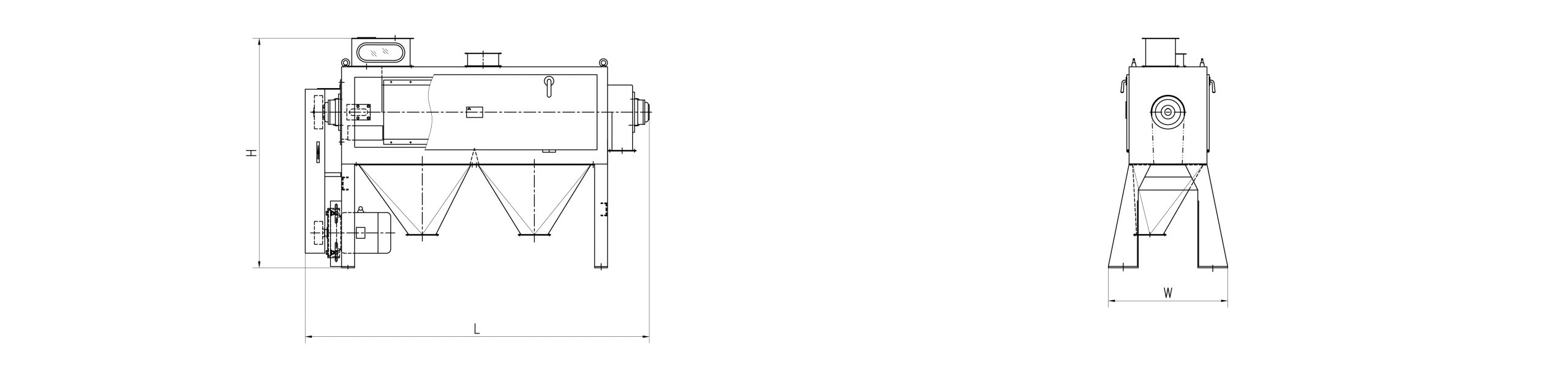

Model Sieve Dia. (mm) Sieve L (mm) Rotation (r/min) Capacity (t/h) Power (kW) Weight (kg) Dimension LxWxH (mm)
WDM30×60 φ300 600 800~1200 2-4 4 5.5 450 1270x400x1210
WDM40×100 φ400 1000 800~1200 4-7 5.5 7.5 710 2130×920×1700
WDM40×150 φ400 1500 800~1200 7-10 7.5 11 750 2630×920×1700
WDM2×40×100 φ400 1000 800~1200 8-14 2x5.5 2x7.5 1200 2130×1490×1700
WDM2×40×150 φ400 1500 800~1200 14-20 2x7.5 2x11 1500 2630×1490×1700
