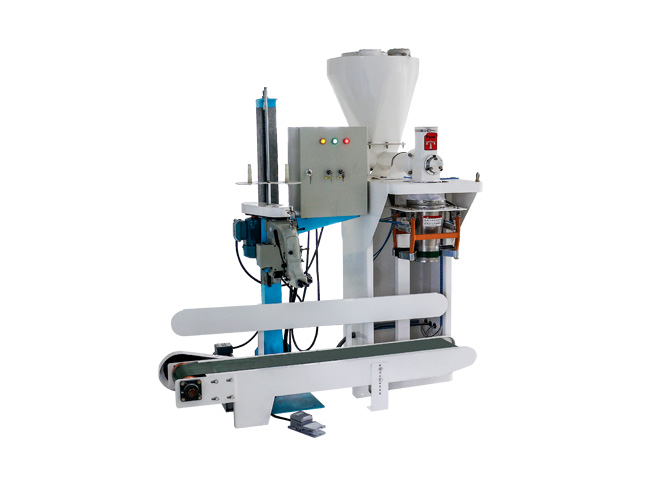

Single-spout Packer YDBZD/WDBZD

Single spout packer YDBZD/WDBZD is composed of feeding screw conveyor, sensor, bag clamp holder, posser, sewing machine, bag conveyor, electronic and pneumatic control unit. Material contact points are SST 304. It is widely used for automatic weighing process of powdery material to achieve high speed packing, automatic target weight control, filling, sewing with operator assistance and conveying. The control system ensures high accuracy and reliable performance.

Product description:

Model Weight
(kg)
Power
(kw)
Capacity
(bags/h)
Outline size(mm)
A B C H
YDBZD/WDBZD-10 2-10 2.2+0.75+0.37 320-350 2110 1177 1475 2248
YDBZD/WDBZD-25 15-25 5.5+0.75+0.37 280-320 2470 1760 1655 2590
YDBZD/WDBZD-50 25-50 5.5+0.75+0.37 260 2850 1865 1730 3092
