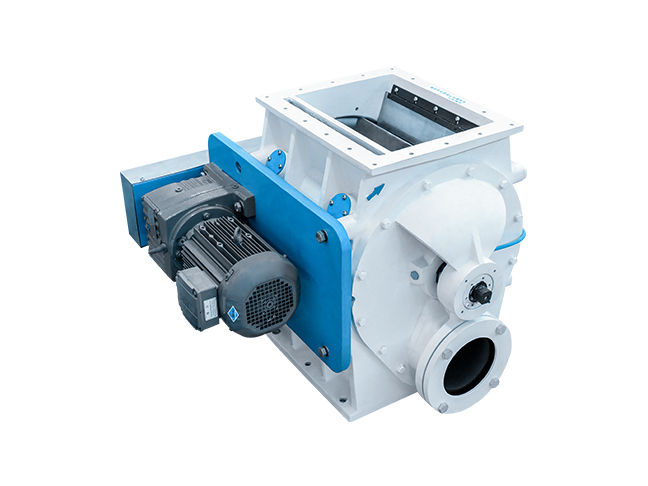

Positive pressure airlock ZGF meters the material flow rate into a positive-pressure conveying pipe line which is then transported away by air. This airlock type is widely used as a feeder device in a positive-pressure conveying system for flour, bran, starch, grain, feed, sugar, chemical, plastic granular materials. There is an axial discharging groove beneath the airlock casing which serves for the conveying operation.
| Model | Vol. (m³) |
Work pres. (kpa) |
Shaft (rpm) |
Pres. ≤50kpa, Flour cap. (t/h) |
Rotor (r/min) |
Power (kw) |
ΦI (mm) |
ΦO (mm) |
L1×W1 (mm) |

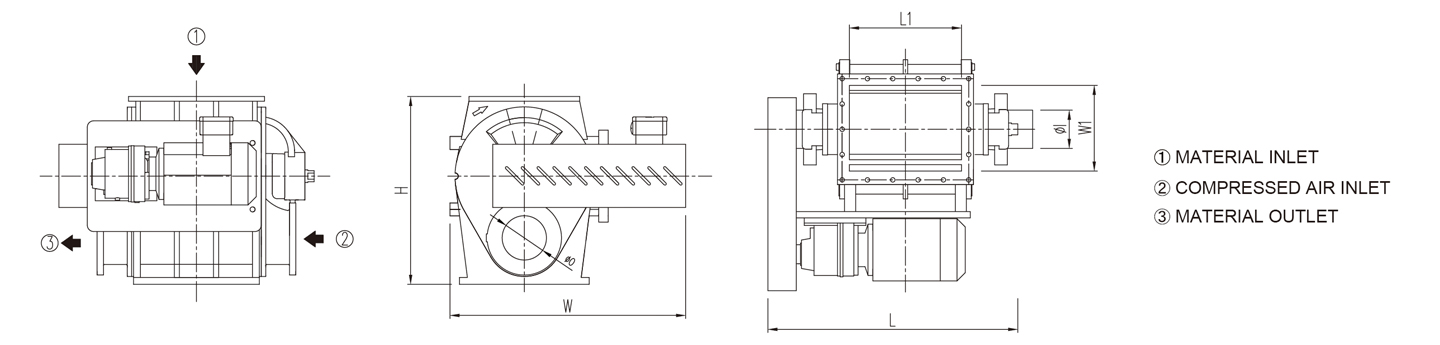

Outline size L×W×H(mm) |
||||
| ZGF-2.5 | 0.0025 | 100 | 40-50 | 1.5-3 | 50-55 | 0.75 | 86 | 54 | 130×140 | 614×525×370 | ||||
| ZGF-5.5 | 0.0055 | 35-45 | 3-5 | 45-50 | 0.75-1.1 | 105 | 68 | 178×200 | 630×570×440 | |||||
| ZGF-13.5 | 0.0135 | 35-45 | 6-10 | 40-45 | 1.1-1.5 | 108 | 108 | 280×235 | 710×639×500 | |||||
| ZGF-28 | 0.028 | 30-35 | 10-18 | 35-40 | 1.5-2.2 | 121 | 140 | 354×235 | 807×745×594 | |||||
| ZGF-56 | 0.056 | 25-32 | 20-30 | 28-32 | 2.2-3 | 138 | 160 | 410×313 | 893×910×710 | |||||
