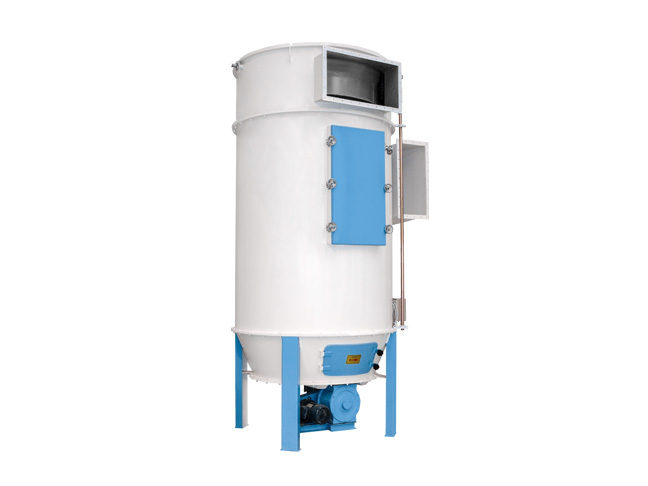

Low pressure filter DPMC/DZMC has filter sleeve individual solenoids installed inside the top section of the machine. Available with flat or cone bottom. This filter type is suitable for industrial applications to separate dust from air, which operates within negative pressurized environments.

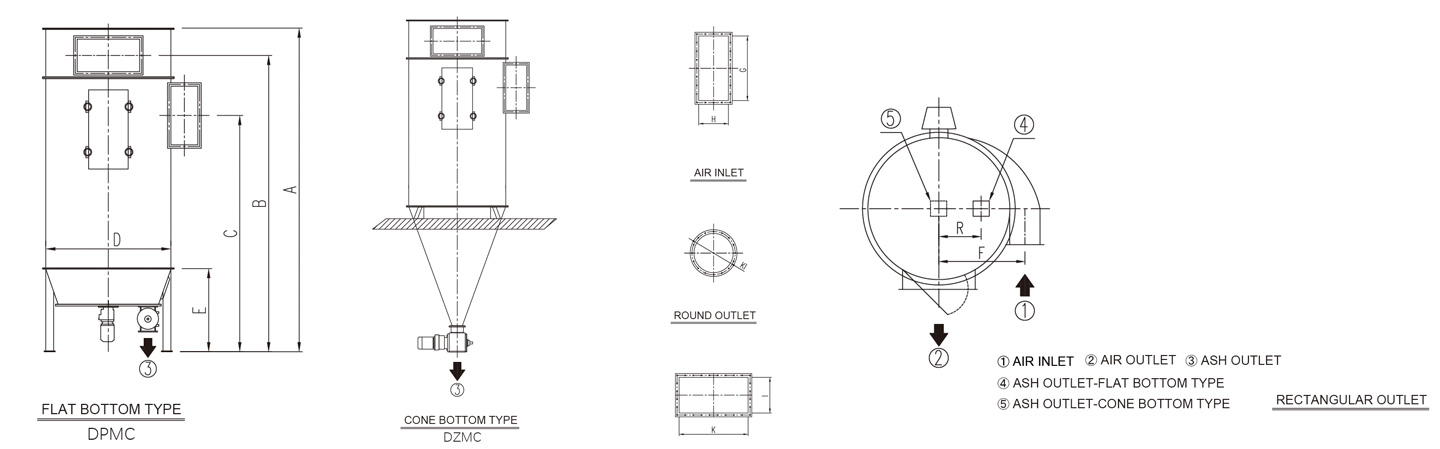

| Model | Sleeve length (mm) |
Filter area (㎡) |
Air vol. (m³/h) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
R (mm) |
F (mm) |
H×G (mm) |
KI (mm) |
Air lock (kw) |
Dust scraper (kw) |
Low pressure blower (kw) |
Weight (kg) |
| DPMC-26 | 1800 | 17.2 | 1032-5160 | 3518 | 3156 | 2503 | 1140 | 1050 | 425 | 708 | 275×500 | Φ450 | 0.55 | 1.1 | 1.5 | 1128 |
| 2000 | 19.1 | 1146-5730 | 3718 | 3356 | 2703 | 1184 | ||||||||||
| 2400 | 23 | 1380-6900 | 4118 | 3756 | 3103 | 1254 | ||||||||||
| DPMC-39 | 1800 | 25.7 | 1542-7710 | 3518 | 3181 | 2433 | 1370 | 1050 | 430 | 830 | 290×640 | Φ500 | 0.75 | 1.5 | 1634 | |
| 2000 | 28.7 | 1722-8610 | 3718 | 3381 | 2633 | 1715 | ||||||||||
| 2400 | 34.6 | 2076-10380 | 4118 | 3781 | 3033 | 1782 | ||||||||||
| DPMC-52 | 1800 | 35.2 | 2112-10560 | 3518 | 3136 | 2383 | 1580 | 1050 | 470 | 960 | 340×740 | 790×410 | 1.1 | 1969 | ||
| 2000 | 38.2 | 2292-11460 | 3718 | 3336 | 2583 | 2068 | ||||||||||
| 2400 | 46.2 | 2766-13830 | 4118 | 3736 | 2983 | 2173 | ||||||||||
| DPMC-78 | 1800 | 51.5 | 3090-15450 | 3518 | 3161 | 2361 | 1840 | 1050 | 620 | 1163 | 485×785 | 845×460 | 1.1 | 1.5 | 2.2 | 2745 |
| 2000 | 57.3 | 3438-17190 | 3718 | 3361 | 2561 | 2882 | ||||||||||
| 2400 | 69.1 | 4146-20730 | 4118 | 3761 | 2961 | 3014 | ||||||||||
| DPMC-104 | 1800 | 68.6 | 4116-20580 | 3518 | 3161 | 2336 | 2020 | 1050 | 640 | 1270 | 520×835 | 1090×460 | 1.5 | 3500 | ||
| 2000 | 76.5 | 4590-22950 | 3718 | 3361 | 2536 | 3678 | ||||||||||
| 2400 | 92.1 | 5526-27630 | 4118 | 3761 | 2936 | 3872 | ||||||||||
| DPMC-130 | 1800 | 88.2 | 5292-26460 | 3518 | 3166 | 2303 | 2350 | 1050 | 830 | 1447 | 530×900 | 1200×470 | 1.5 | 1.5 | 3 | 3105 |
| 2000 | 98 | 5880-29400 | 3718 | 3366 | 2503 | 3159 | ||||||||||
| 2400 | 115.2 | 6912-34560 | 4118 | 3766 | 2903 | 3269 |
