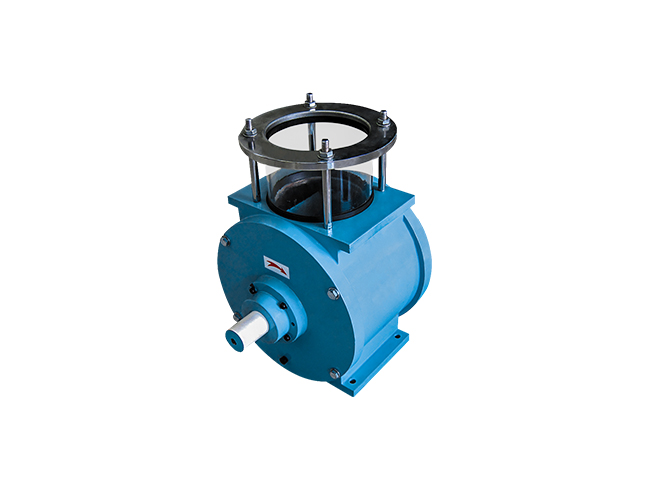

Airlocks FGF are normally installed below the cyclones or jet filters. They are made of special cast iron material to ensure perfect tightness. They are designed for discharging mill stock, filter dust in the food processing industry, and feeding materials such as grain, break stock, semolina, flour or other similar material from pneumatic conveying lines.
| Model | Vol. (m³) |
Shaft (rpm) |
Single motor | Motor KW couple drive | ||||
| RPM (r/min) | Power (kw) | RPM (r/min) | Two(2) (kw) | Three(3) (kw) | Four(4) (kw) | |||
| FGF-5 | 0.005 | 35-55 | 43 | 0.55 | 48 | 0.75 | 1.10 | 1.50 |
| FGF-7 | 0.007 | 35-55 | 43 | 0.55 | 40 | 1.10 | 1.10 | 1.50 |
| FGF-9 | 0.009 | 30-50 | 43 | 0.75 | 40 | 1.10 | 1.50 | 2.20 |
| FGF-12 | 0.012 | 30-50 | 43 | 0.75 | 40 | 1.10 | 1.50 | 2.20 |
| FGF-16 | 0.016 | 28-45 | 43 | 0.75 | 40 | 1.10 | 1.50 | 2.20 |
